Industrial extraction & processing equipment
Automated extraction and processing systems, engineered and built in Michigan.
MACH Technologies designs, fabricates, assembles and tests turnkey botanical and biomass processing equipment — PLC-controlled, Class I Division 1/2 compliant, and supported for the life of the system.
- Single HMI · recipe-driven PLC
- Jacketed, vacuum-insulated vessel
- Automated solvent recovery
Built to code, and documented
Designed, fabricated, assembled and tested in our vertically integrated Michigan facility. Systems engineered for Class I Division 1 and Division 2 environments.
Equipment categories
Five system families, one engineering team
Stand-alone units or complete integrated lines. Every system is specified around your throughput target, your solvent, and the classification of the room it will stand in.
-

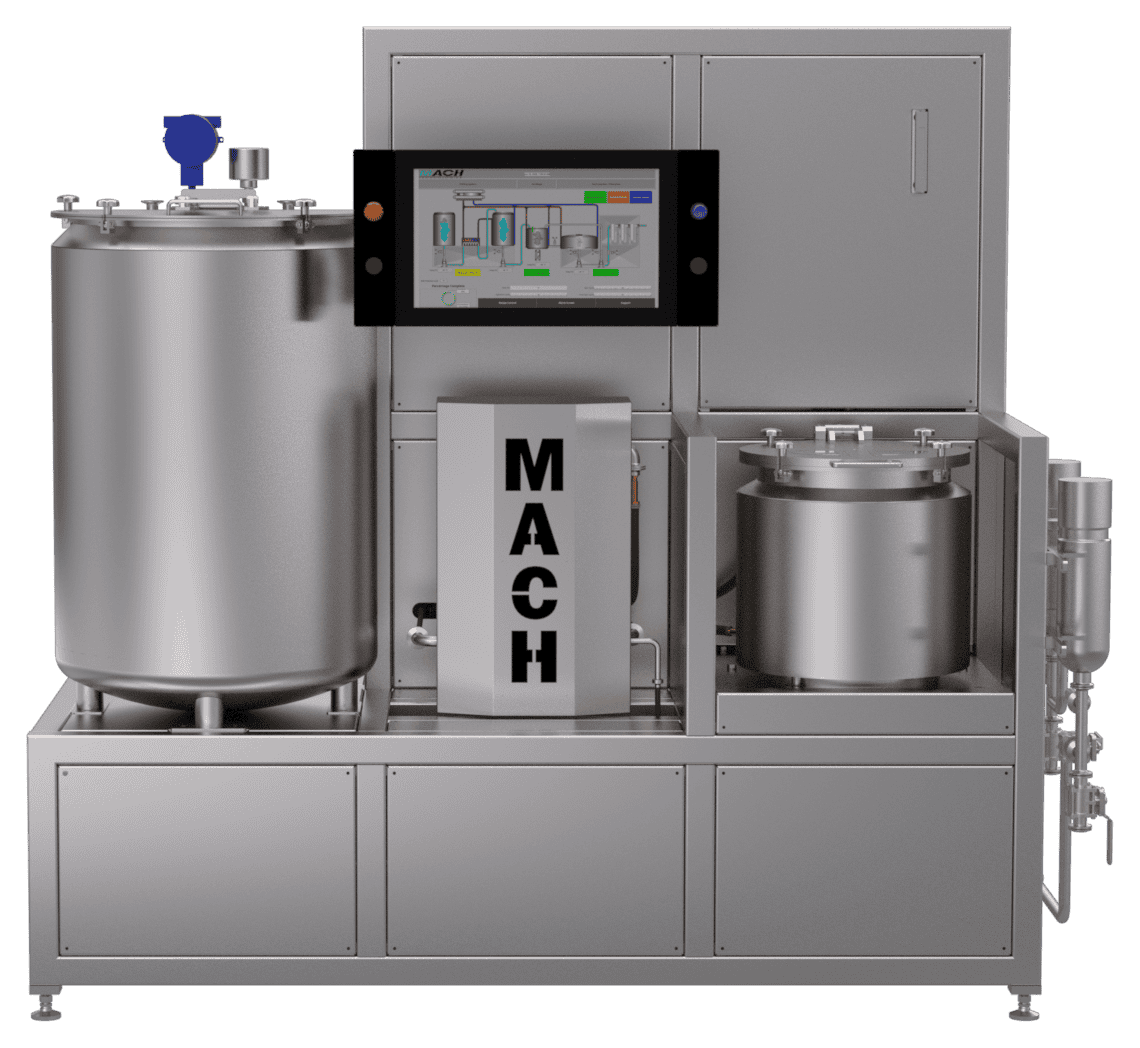

EES Series
Automated ethanol extraction
A complete cold-ethanol line — chilling, extraction, recirculation, particle filtration, solvent recovery with automated discharge, and decarboxylation — under one recipe-driven control system.
- EES-X-144 to EES-X-3600
- 10–20 min batch cycle
- Single operator interface
-

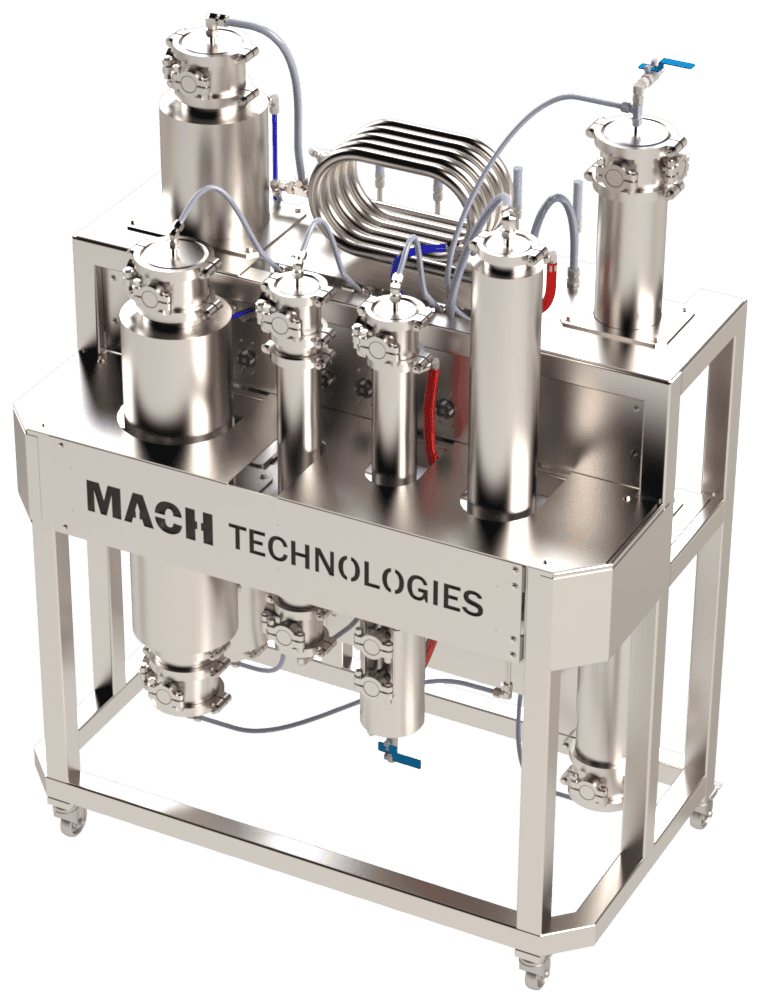

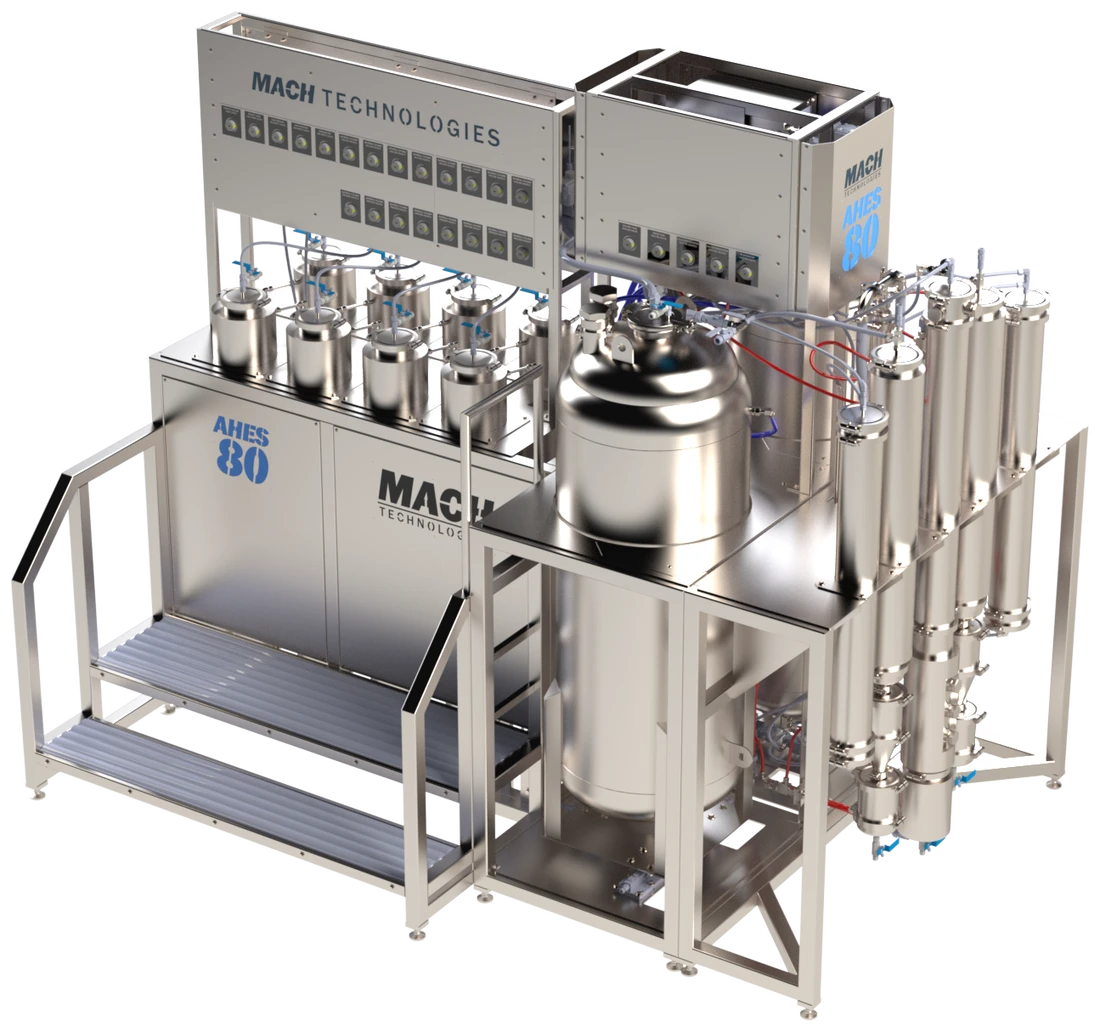

AHES / MHES Series
Hydrocarbon extraction
Closed-loop butane and propane systems with precise temperature and pressure control and integrated safety interlocks. Fully automated (AHES) or operator-driven (MHES), on the same mechanical platform.
- AHES-5 · AHES-40 · AHES-80
- 5–80 lb per batch
- Class I Division 1 design
-

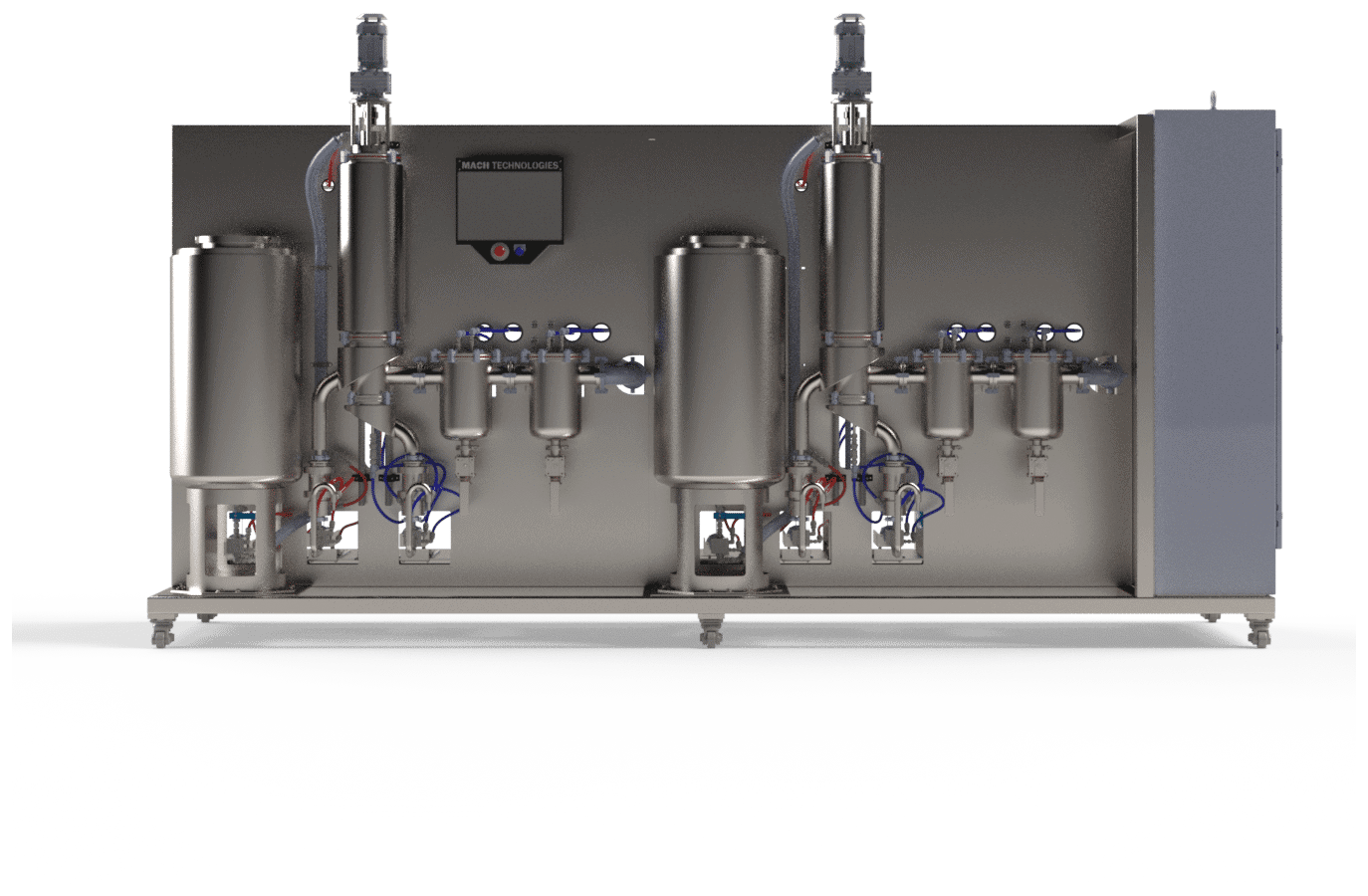

WFDS Series
Wiped-film distillation
Single- and dual-stage short-path separation with vacuum protection, precision gear pumps and touchscreen control. Dual cold traps protect vacuum depth; the quick-lift evaporator keeps cleaning off the critical path.
- WFDS-1S · WFDS-2S
- 0.15–0.60 m² surface area
- Remote diagnostics module
-
TES Series & M-Series
Thermal extraction, recovery & post-processing
Stainless-steel thermal extraction with no special environmental classification required, plus modular chilling, centrifuge, solvent-recovery and decarboxylation units you can buy one at a time and automate later.
- TES-5 · TES-20 · CES · ASR · DS
- 2–6 hr cycle · 50–135 GPH chilling
- Non-rated equipment
-

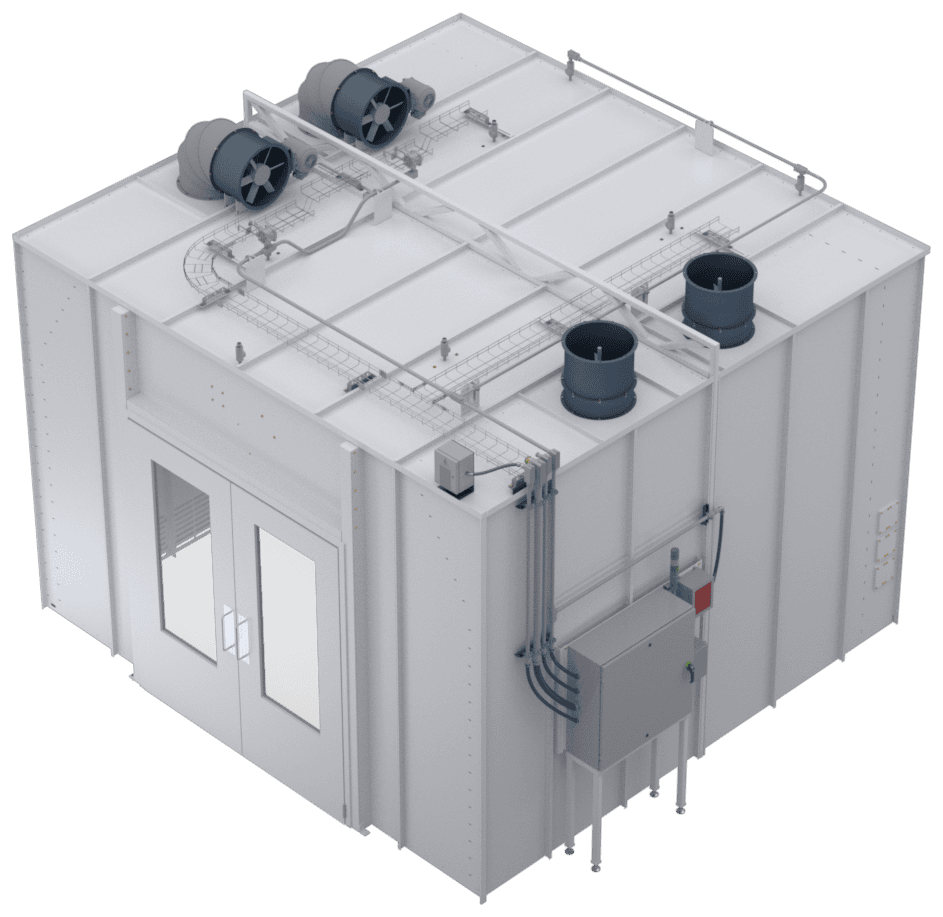

C1D1 / C1D2 Enclosures
Classified enclosures & turnkey integration
Classified booths and enclosure systems, plus complete facility design and buildout — process flow, room classification, utilities and equipment specified as one engineered package rather than assembled from parts.
- C1D1 and C1D2 enclosures
- Complete lab design & buildout
- Single-source integration
Published specifications
The numbers, before the conversation
Model designations and rated figures as published by MACH engineering. Final configuration is specified against your feedstock, solvent and room classification.
| Model | Series & configuration | Rated capacity | Cycle time |
|---|---|---|---|
| Ethanol extraction | |||
| EES-X-144 | EES · automated turnkey | 80 per shift · 144 per day | 10–15 min |
| EES-X-900 | EES · automated turnkey | 300 per shift · 900 per day | 14–18 min |

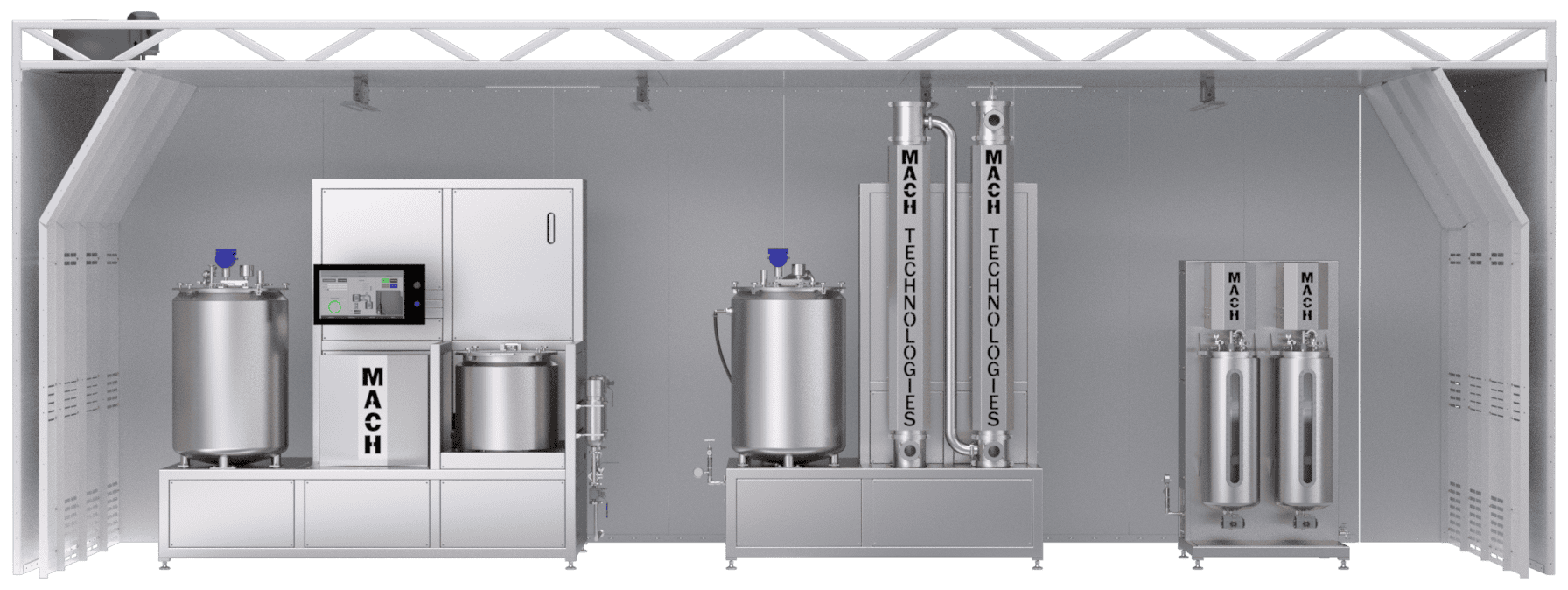

| EES-X-1800 | EES · automated turnkey | 600 per shift · 1800 per day | 14–20 min |
| EES-X-3600 | EES · automated turnkey | 1200 per shift · 3600 per day | 15–20 min |
| Hydrocarbon extraction | |||
| AHES-5 | AHES · automated closed-loop | 5 lb per batch | Recipe dependent |
| AHES-40 | AHES · automated closed-loop | 40 lb per batch | Recipe dependent |
| AHES-80 | AHES · automated closed-loop | 80 lb per batch | Recipe dependent |
| MHES | MHES · operator-driven closed-loop | Scaled to match AHES models | Operator dependent |
| Distillation | |||
| WFDS-1S | WFDS · single-stage wiped film | 0.15 / 0.30 / 0.40 m² surface | Continuous feed |
| WFDS-2S | WFDS · dual-stage wiped film | 0.30 / 0.40 / 0.60 m² surface | Continuous feed |

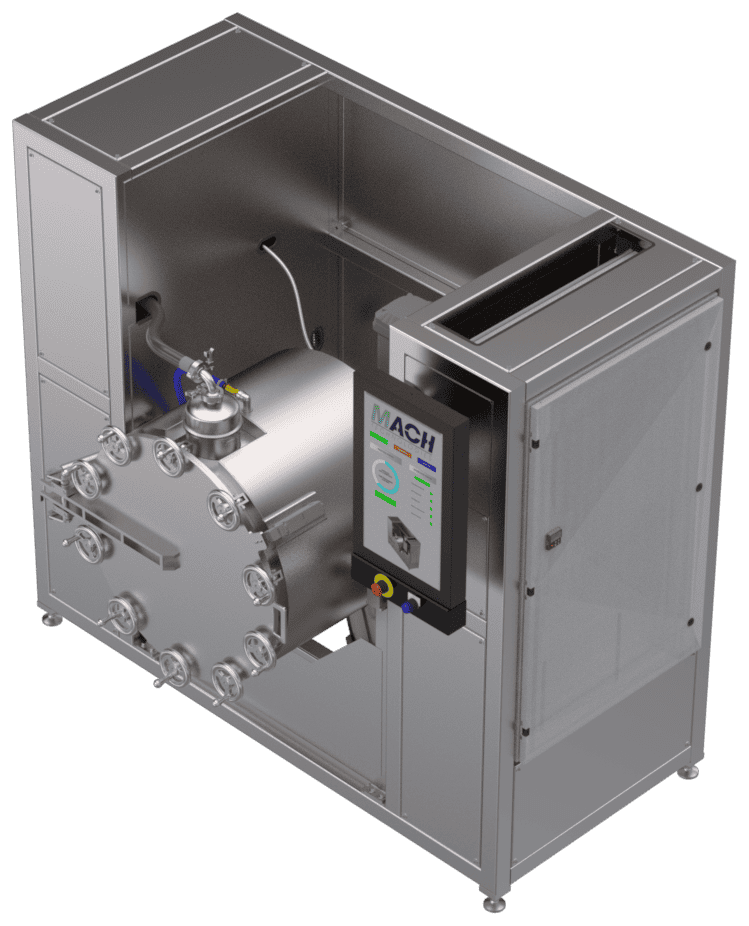

| TES-5 | TES · thermal, 110V/1Ph/60Hz | Up to 5 lb | 3–6 hr |
| TES-20 | TES · thermal, 480V/3Ph/60Hz | Up to 20 lb | 2 hr |

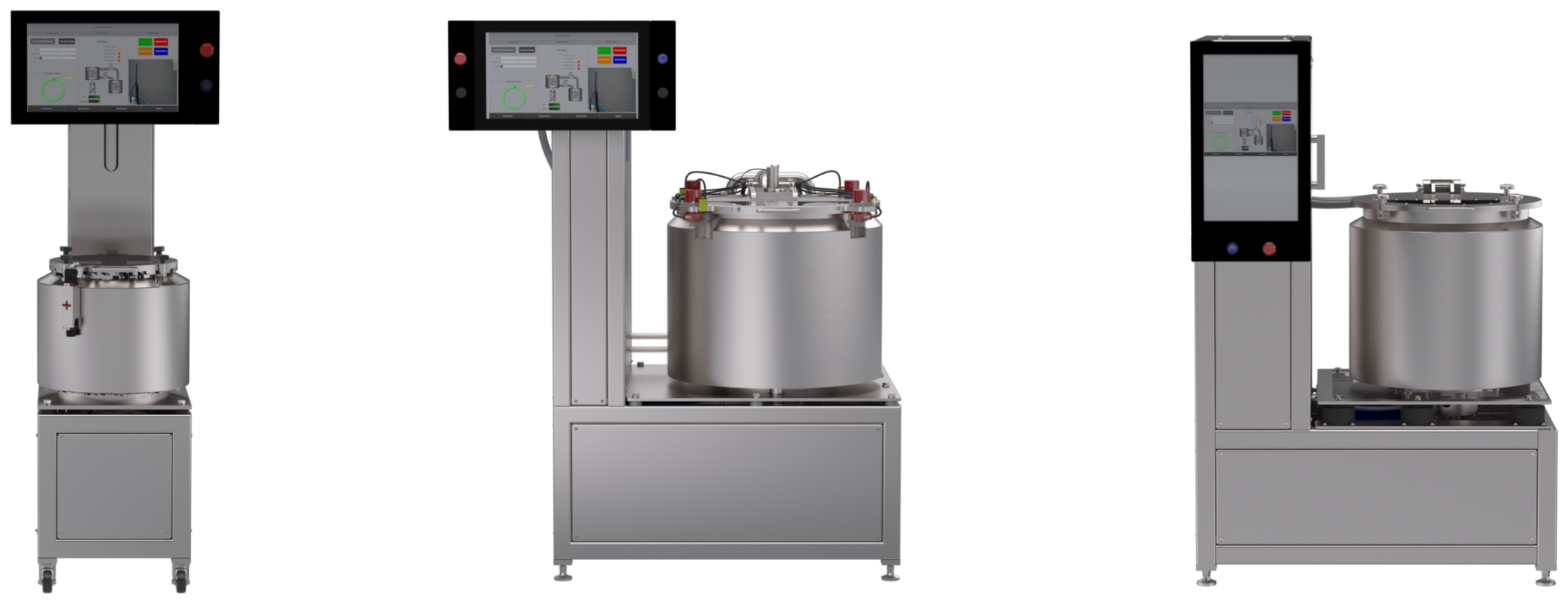

| Modular units — M-Series | |||
| MST / MDT | Solvent chilling | 50 / 75 / 135 GPH | Continuous |
| CES-80 → CES-1000 | Centrifuge extraction | 2–55 lb per batch | 8–20 min |
| ASR-20 → ASR-75 | Automated solvent recovery | 20–90 GPH | Continuous |
| DS-20 → DS-5050 | Decarboxylation, single & dual vessel | 20–50 L per vessel | Alternating vessels |
Capacity figures are as published by MACH engineering. EES-X per-shift and per-day capacities are stated as rated throughput. Specifications are subject to change; final figures are confirmed on the system quotation.
Why MACH
A manufacturer, not a reseller
-
Engineering expertise
Mechanical, chemical, electrical and process engineers in one team, with 40+ years of combined chemical, mechanical and controls experience behind the control system alone.
-
Commercial-scale systems
A product ladder that runs from a single modular unit to a fully automated turnkey line, so the first system you buy does not have to be the last one you can use.
-
Manufacturing quality
Vertically integrated in Michigan. We design, fabricate, assemble and test every system under one roof, which is why quality is a process control rather than a supplier promise.
-
Customization
Systems are specified against your throughput, solvent and room classification — including complete facility design where the process flow has to be engineered around the building.
-
Support & service
24/7 remote technical support through an onboard connection, global service coverage, and a dedicated spare-parts team that stocks for same-day shipment.
-
Built in the USA
Every system is manufactured, assembled and tested in our Michigan facility, and installed across the United States and internationally.
How a system gets built
From production target to running line
-
01
Discovery & goal setting
We define the short-term production target and the long-term scalability need before any equipment is named.
-
02
Process design
A tailored process flow engineered around your output goal, with Class I Division 1/2 compliance and automation designed in from the start.
-
03
Equipment specification
Every unit selected for performance, scalability and ease of use — extraction, distillation, separation and post-processing as one integrated specification.
-
04
In-house manufacture & QC
Fabricated, assembled and tested in our Michigan facility, so the system is proven before it ships.
-
05
On-site installation
MACH technicians work alongside your team and contractors on site prep and system installation.
-
06
Startup & operator training
Operation and safety, maintenance procedures, troubleshooting and process optimization — delivered to your operators, not just documented.
-
07
Long-term support
24/7 remote technical support, global service access and fast-shipping spare parts for the life of the system.
Request a quote
Tell us your throughput target.
Send the production requirement and we will come back with a system configuration and a quotation — not a brochure. An equipment specialist answers every inquiry.
- Phone
- 855.798.4661
- Manufacturing
- Michigan, USA
- Support
- 24/7 remote technical support
Speak with an equipment specialist
Bring your throughput target and your room classification. We will tell you what the system needs to be.
